You can boost factory output with top equipment from Bozhiwang. Selecting the best wire stripper machine requires precise matching of your daily processing demands. Heavy scrap recovery and delicate harness lines need reliable automatic wire stripping machine choices. Advanced wire stripping equipment processes thin 0.1 mm² signal lines up to 240 mm² power conductor sizes easily.

High-speed systems yield 700 to 900 pcs/hr throughput. High-volume operations often reach a positive ROI within six months. A modern wire cutting and stripping machine maintains tight feed precision for every cable. You reduce labor costs and maximize profit by choosing an industrial wire stripping machine built for your exact shop requirements.

Key Takeaways

• Pick an industrial wire stripper that fits your everyday cable sizes and shop work needs.

• Servo-driven tools boost factory speed and produce a high output of up to 900 pieces every hour.

• Belt-driven feed systems protect fragile wire covers from squeeze marks during fast machine runs.

• Automated touch-screen controls save job settings to speed up daily work setups and prevent mistakes.

• Strong wire-peeling machines safely clean thick metal-covered cords to boost money earned from reusing copper.

Top Picks for Automatic Wire Stripping Machine in 2026

Top Benchtop and Servo-Driven Models

Factories require dependable wire stripping equipment to handle precision work. Today's wire stripping equipment easily beats older pneumatic models. Servo-driven units use smart sensors to maintain exact size limits. Your crimp heights stay consistent because digital systems regulate both stroke and power.

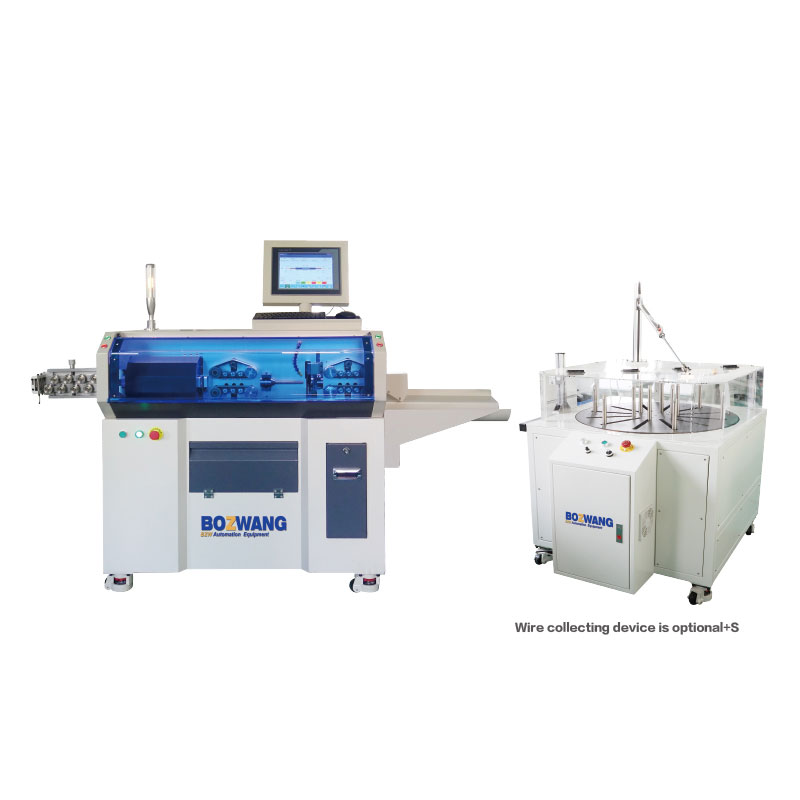

Bozhiwang builds smart mid-range servo models along with small desktop versions. These units peel complex multi-layer jackets without nicking inner wires. An easy HMI touch-screen saves up to 100 job recipes for quick setup. Specialized belt feeders slide wire smoothly to protect soft insulation from pinch marks.

Benchtop wire stripping machines provide shops with handy versatility. You can pick compact tools like the StripMeister1, processing 18 AWG up to 250 MCM wires. The StripMeister E1000 strips thin wires up to 1000 MCM size. VEVOR's Portable Wire Stripper runs 18 AWG to 1-inch lines fast at 75 ft/min. The VEVOR Benchtop Automatic Wire Stripping Machine uses a 1400 RPM motor for 1.5-inch cables.

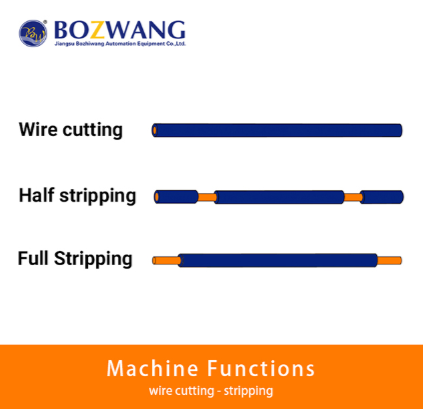

Our wire stripping machine comparison highlights how servo gear cuts small wire accurately. The Bozhiwang line cuts lengths from 0.1 to 99,999.99 mm, stripping front ends from 1 to 400 mm and back ends from 1 to 260 mm.

Heavy-Duty Scrap and Armored Cable Processing

Scrap yards need a heavy-duty wire stripping machine that runs all day long. A heavy-duty wire stripping machine slices through tough outer layers with ease. Large recycling centers depend on strong tools for big metal harvesting jobs. Gensco CSX scrap strippers pull armored lines fast to boost valuable copper recovery.

The Super Stripper series can process cable diameters up to 205 mm (8") and achieve a throughput of up to 90 feet per minute.

Operator safety is vital during tough factory jobs. Modern scrap equipment shields workers when pulling heavy loads:

• Protective guards keep hands far away from sharp spinning blades.

• Red emergency buttons instantly kill power during sudden equipment problems.

• Sturdy rubber feet hold the frame still under heavy cable tension.

• Sealed cutting chambers stop loose jacket pieces from flying outward safely.

Pair your automatic wire stripping machine with a scrap cable granulator machine for maximum profit. A scrap cable granulator machine grinds chopped metal into pure chunks. Your plant strips bulk wire faster when running output from an industrial wire stripping machine right into a scrap cable granulator machine.

Picking the best industrial wire stripping machine speeds up your shop output. Every industrial wire stripping machine must match your actual daily workload. This clear wire stripping machine comparison helps you choose the right device. A new industrial wire stripping machine increases overall plant work speeds. The correct automatic wire stripping machine brings fast payback on your investment. Adding a fresh industrial wire stripping machine upgrades your whole cable processing line today.

Choosing the Best Wire Stripper Machine for Your Shop

Gauge Range and Feed Rate Calibration

You should check your target wire size when picking new factory equipment. An industrial wire stripping machine handles thin 0.1 mm² signal lines up to 240 mm² power cables. Make sure to match physical machine limits with your real daily shop schedules. Accurate feed settings keep length accuracy within ≤0.2% during fast feeding cycles. This smart control keeps your automated stripping operations super steady for every single factory lot.

Heavy-duty shop work demands steady motor power and exact speed adjustments. Top feed drive systems maintain smooth output speeds between 700 and 900 pieces per hour easily. Modern digital controllers adjust roller pressure to fit different conductor weights automatically. Correct feed rate calibration stops wire slippage inside the drive roller assembly. You guard fragile inner strands while boosting overall factory output.

Blade Dynamics and Material Compatibility

Blade shape directly changes how cleanly it cuts different insulation types. Rotary blades score tough XLPE jackets, foil shields, and braid layers without scraping thin inner copper wires. Simple V-blades cut standard PVC insulation fast for basic wire stripping tools. Choosing the right cutter setup provides quality stripping power across all your custom cable processing lines.

A dual-blade system strips outer jackets and inner insulation layers using one continuous stroke. Adding an automated wire cutting and stripping machine speeds up complex multi-layer jacket removal jobs. You remove costly hand-trimming errors on busy automotive wire harness production lines. Finding the best wire stripper machine ensures your shop runs an efficient industrial wire stripping machine setup for every cable design.

Modern blade assemblies use tough alloy steel to fight surface wear during long work shifts. You can swap cutter parts fast without pausing your main assembly line for too long. Smart blade adjustments stop jacket pinching during heavy continuous operation. Buying a reliable industrial wire stripping machine keeps your high-volume wire processing line profitable and highly productive.

Advanced Features of Industrial Wire Stripping Machine Options

Belt-Type Feeding and Anti-Marking Tech

Traditional feed rollers often damage delicate wire insulation during heavy processing runs. An industrial wire stripping machine solves this problem with advanced belt mechanisms. Soft insulation materials need gentle handling to preserve their physical integrity.

The synchronous belt drive feeding mechanism ensures a firm grip without leaving marks or deforming the wire.

You protect fragile outer jackets during fast production cycles. Synchronous belts spread pressure evenly along the cable surface. This modern feed mechanism improves material movement for complex automotive and sensor wiring. You maintain precise conductor alignment throughout every processing shift. An industrial wire stripping machine equipped with belt feeding prevents surface scraping on soft jackets. You eliminate costly scrap metal and reduce insulation waste on your shop floor.

Automated Controls and Harness Integration

Modern wire stripping equipment simplifies production management with smart digital interfaces. You save critical calibration time during frequent wire changes. Smart controllers maintain continuous operations without manual re-tooling steps.

• Smart touch screen HMI with 100-recipe memory enables operators to recall job parameters in seconds, reducing setup time.

• Parameter changes take only seconds; saved recipes for frequent jobs can be loaded instantly with a single touch, simplifying changeovers.

Automated batch controls count finished wire segments accurately during long operation runs. Your plant connects each wire cutting and stripping machine to modern factory networks easily. Smart control systems communicate directly with downstream crimping, twisting, and sealing stations.

• IoT connectivity and real-time monitoring enable predictive maintenance and minimize factory downtime.

• Integrated machines combine cutting, stripping, waterproof-seal handling, and terminal crimping in one continuous process.

Digital tracking helps plant managers analyze daily machine throughput metrics. You build an efficient production line with an automatic wire stripping machine. These connected units replace slow manual wire stripping tools. Operating an industrial wire stripping machine increases daily plant output significantly. Every high-performance industrial wire stripping machine guarantees accurate wire processing across your entire harness assembly floor.

High-Precision Wire Cutting and Stripping Machine Applications

Automotive and EV Battery Wire Processing

Car plants need super exact work when building wire harnesses. Modern electric cars use thick wires to move power from batteries to motors safely. Regular automatic tools cannot handle these big wire sizes well. Heavy machines cut these large cables cleanly and strip the outer covers safely. Workers keep fast production speeds while protecting soft inside copper wires from any scratches.

Car factories must follow strict IPC/WHMA-A-620 rules for top quality. Using an exact wire cutting and stripping machine keeps sizing steady during long work days. Careful machine setups stop mistakes before parts go to automatic crimping machines.

• Strip length tolerance: ±0.3 mm per IPC/WHMA-A-620 standard.

• Minimum pull-off force for 20 AWG wire: 58 N.

• Minimum pull-off force for 14 AWG wire: 222 N.

• Standard open-barrel crimp terminal: 3–5 mm of exposed conductor.

Control Panel and Photovoltaic Cable Assembly

Solar power setups need waterproof connections to survive tough outdoor weather. Your workers need to strip solar cables carefully to block rain and moisture. Stripping cables to correct lengths lets sealant coat exposed copper wires during wire end installs.

During installation, ensuring that wires are properly stripped to the manufacturer’s specified length (typically 1/4″ to 3/8″) allows the sealant to fully surround the exposed conductors.

Control box builders arrange hundreds of tricky wires inside small metal cabinets. You keep cabinet wires neat by running cable lengths through a wire cutting and stripping machine. Smart digital panels give every wire end the exact same stripped length for terminal blocks. This dependable equipment processes each solar wire with great care. Good wire stripping stops dangerous electric shorts and protects delicate panel parts from sudden power drops.

You should pick the best industrial wire stripping machine for your daily factory work and cable types. Car harness lines need exact servo controls for thin wires. Metal recycling yards need strong steel parts to process big metal cables constantly.

You can compare worker cost savings with total work speed by checking your current shop setup. Hand tools work for small jobs, but automated wire stripping equipment increases plant output greatly. Modern wire stripping machines handle different cable sizes from 26 AWG to 0 AWG easily.

Always verify machine parameters and request equipment trial runs before processing high-voltage cables or signal wiring.

Buying a solid industrial wire stripping machine guarantees high overall plant productivity.

FAQ

What wire size range can an automatic wire stripping machine handle?

Modern industrial machines process delicate 0.1 mm² signal wires up to heavy 240 mm² power cables. Heavy-duty scrap strippers handle large conductor sizes ranging from 1/16 inch up to 8 inches in diameter.

How fast can industrial wire processing machines operate?

High-efficiency servo-driven models achieve processing capacities between 700 and 900 pieces per hour. Heavy scrap stripping equipment pulls thick cables at speeds up to 90 feet per minute.

How do belt-type feed mechanisms protect soft wire insulation?

Synchronous belt feed mechanisms spread gripping pressure evenly along the cable surface. This gentle feeding method prevents pinch marks and surface damage on soft insulation jackets during high-speed production runs.

What cutting length accuracy can you expect from automated equipment?

Modern automated cutting and stripping machines maintain a high length accuracy within ≤0.2%. Advanced digital controls stop wire slippage to ensure consistent segment lengths across large processing batches.
