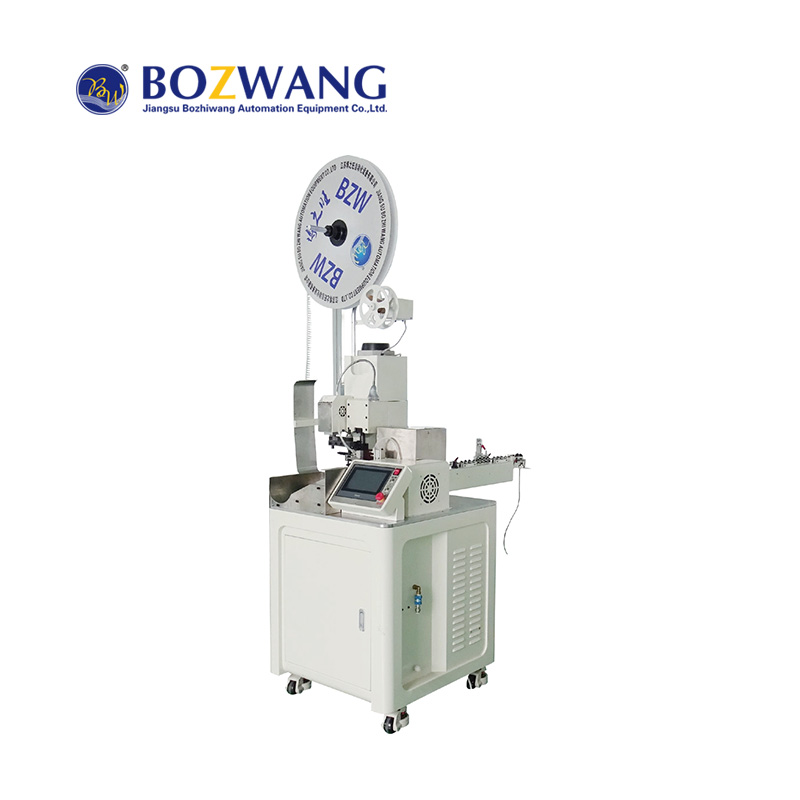

NO.1 PLC control system, automatic wire cutting, one end crimping and one end
twisting.
NO.2 High precise Italy BGM frequency motor control, low working noise, long
service life, and stable tensile force.
NO.3 Touching screen operation; Stripping length, cutting depth, crimping position
are digital imputed.
NO.4 Quick process to replace materials; fully digital debugging. Convenient
maintenance.
NO.5 Efficient stepping drive, high precision and speed. High cost performance.
| Technical Parameter | ||
| Model | BZW-1.0 | BZW-1.0+N |
| Wire range | 0.3-2.5 mm²（AWG12#—AWG28#） | |
| Cutting length | 45mm~10000 mm (Other size can be special ordered） | |
Cutting precision | ±（0.2%*L+1）mm | |
Stripping length | 1.5-10mm (Other size can be special ordered） | |
| Feeding speed | 6.0m/s（max） | |
| Capacity | 4500 pcs/h (within length 100mm) | 4500 pcs/h (within length 300mm) |
| Crimping force | 20KN | |
| Motor | 1200w | 1300w |
| Air supply | 0.5-0.7Mpa 6m3/h | |
| Power | 220V 50/60Hz | |
| Weight | about 200kg | about 308kg |
| Dimension | 650*700*1500mm | |
| Function | single end half stripping, single end crimping | Wire cutting, single end stripping and twisting, single end terminal crimping |
Applicator range | Stroke 30mm (40mm stoke can be special ordered) | |
Detecting ability | wire knotting, wire lacking, terminal lacking and air pressure detecting | |
