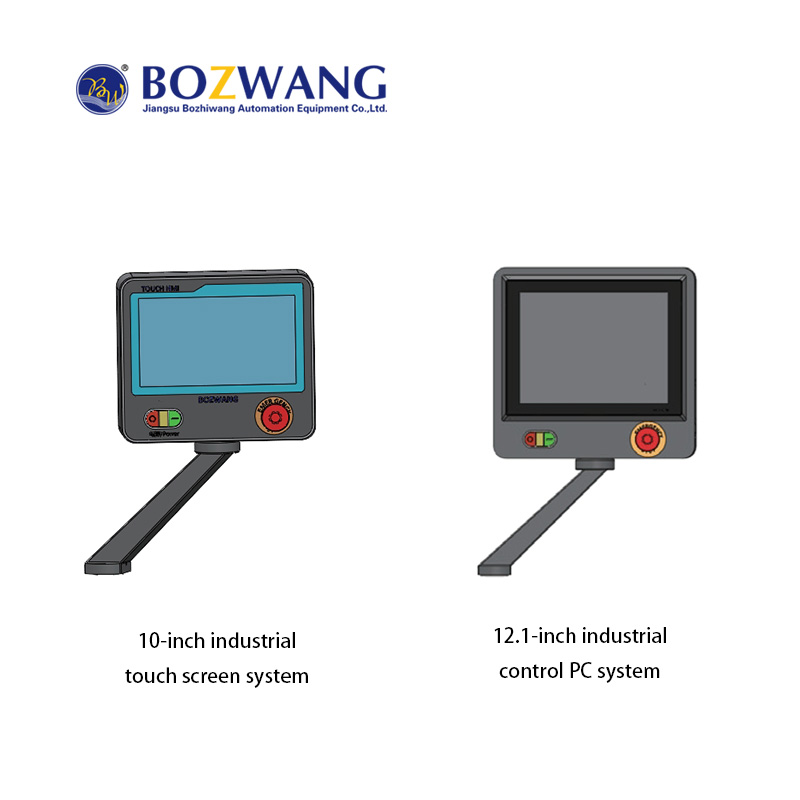

This series of multifunctional crimping machines adopts a servo control system and an optional PC-side operating system. It can
collect crimping data and trace production quality while also interacting with the MES system for data.
NO.1 Servo crimping system not only ensures crimping accuracy but also improves stability and consistency.

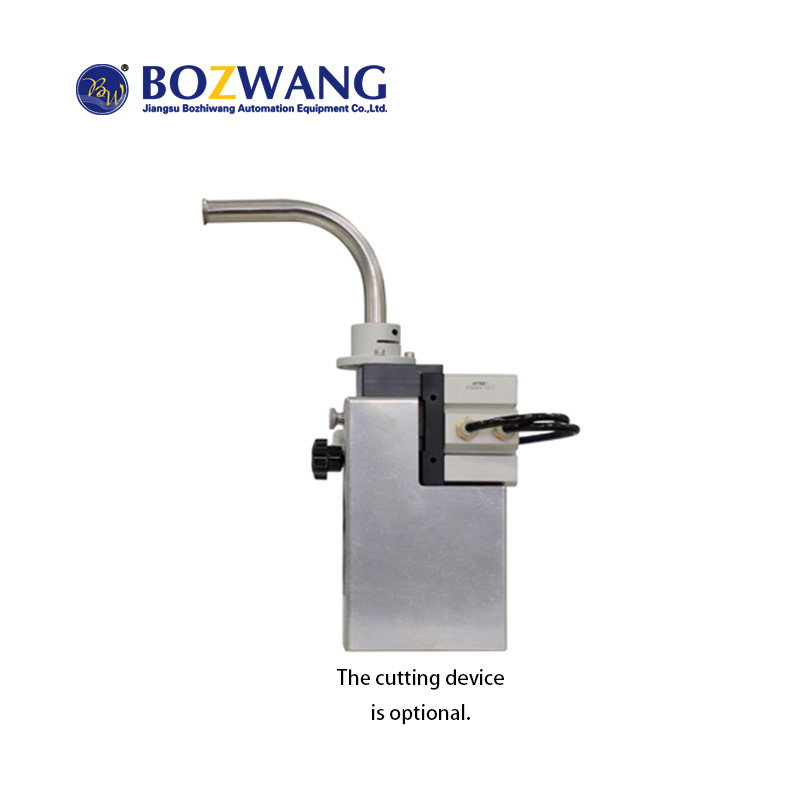

NO.2 Integrated pneumatic feeding, cutting, paper collection, and other rich functional modules.
NO.3 The embedded pressure management system can monitor products in real time to ensure product quality.
NO.4 Production process parameters can be stored in configurable ways to achieve rapid switching of small batch orders.
NO.5 The clever protective cover design ensures safe operation without losing efficiency.
| Technical Parameter | |||

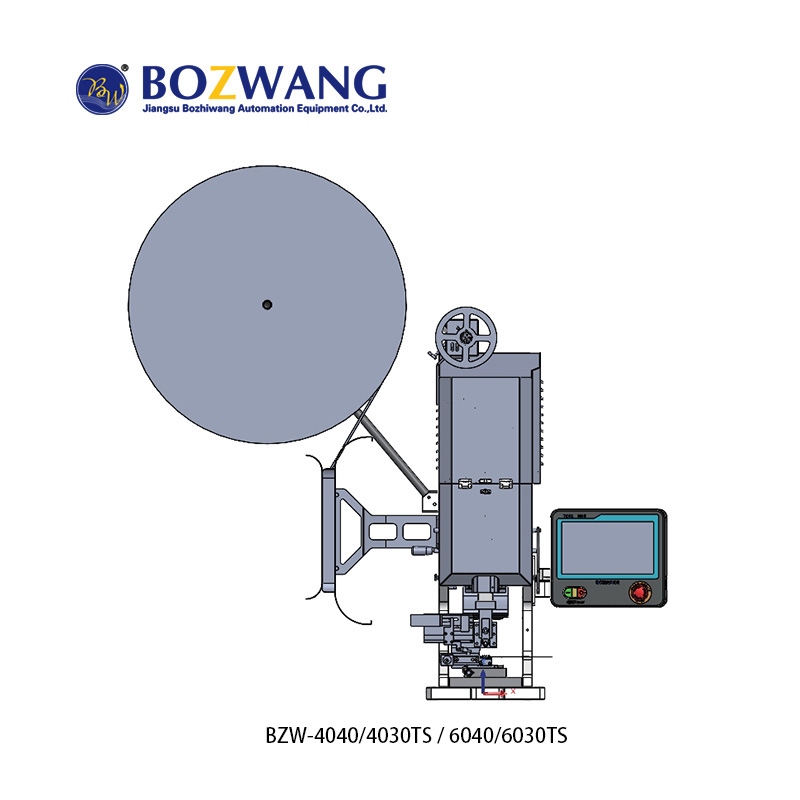

| Model | 2.5TS | 4040/4030TS | 6040/6030TS |
| Crimping force | 25KN | 40KN | 60KN |
| Stroke | 40/30mm | 40/30mm | 40/30mm |
| Accuracy | ±0.01 | ±0.01 | ±0.01 |
| Closure height | 135.78/119.7mm | 135.78/119.7mm | 135.78/119.7mm |
| Power | AC 220V 50Hz | AC 220V 50Hz | AC 380V 50Hz |
| Rated power | MAX 2.0kw | MAX 2.5kw | MAX 3.0kw |
| Air source | 0.5-0.7MPa | 0.5-0.7MPa | 0.5-0.7MPa |
| Dimension | 1000*600*1500mm | 880*600*980mm | 880*600*980mm |
| Weight | 120kg | 100kg | 100kg |
