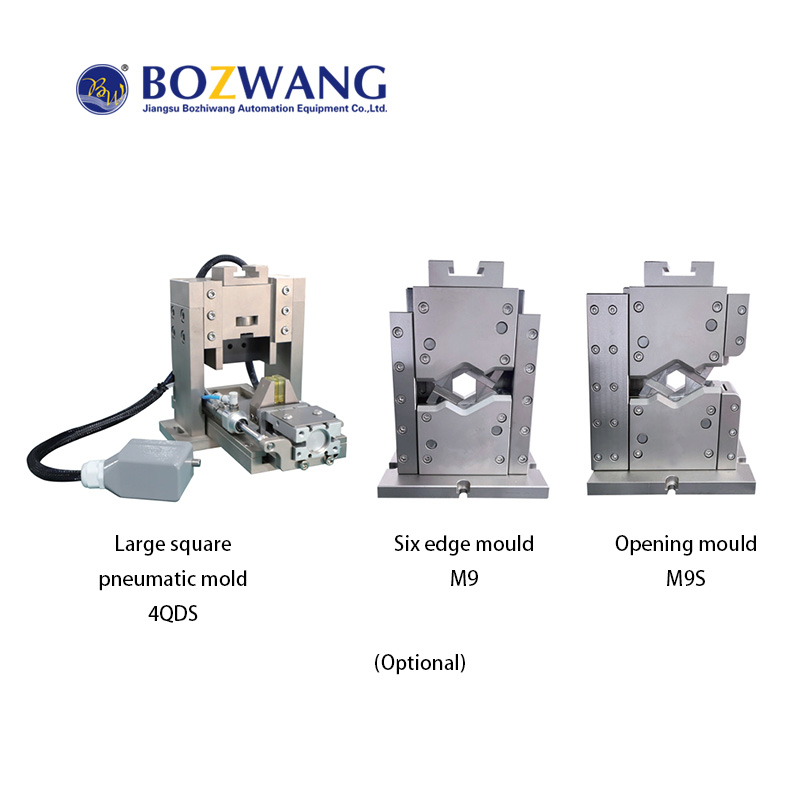

NO.1 New mode servo motor crimping machine, can change
different types of applicators according to different products.
NO.2 Advanced servo motor and PLC control system.
NO.3 Equipped with baseplate pressure sensor, can display the
actual pressure value.
NO.4 It can communicate with PLC and pressure monitoring
system through high-end industrial computer, and the data can be
stored and traced.
NO.5 Data storage for different parameters, which allows
continuous sequential crimping function.
NO.6 Stable working, large crimping force, overload protection.
NO.7 Applicators made of imported applicator steel, long durability.

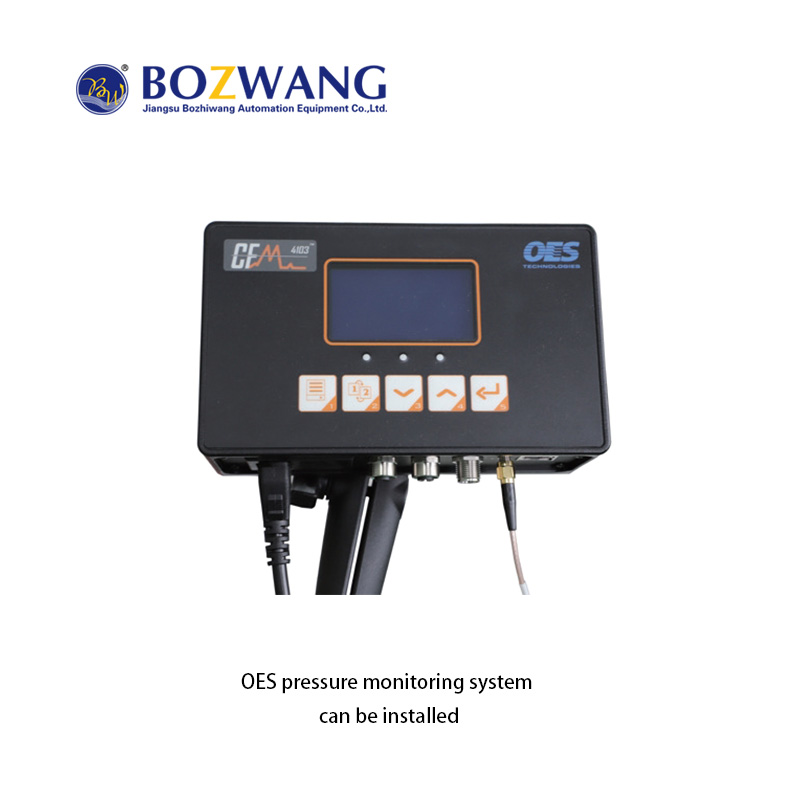

NO.8 OES pressure management system can be installed and
connected to MES system.
Note: user should upload data by themselves if connect with MES
and server.
| Technical Parameter | |||
| Wire range | 35-400mm2 | Motor | 5500w |
Crimping force | 600KN | Power | 380V 50/60Hz 3N+P+PE |
Crimping width | ≤30mm | Dimension | 860*960*1750mm |
Stroke | 72mm | Weight | 800kg |
