NO.1 Suitable for crimping process with customized or cold-pressed terminals;
NO.2 No need to change crimping applicator, servo control system with high accuracy;
NO.3 Separated crimping interface, suitable for intermediate junction, and new energy right angle terminal crimping;
NO.4 Actual terminal square can be adjusted, with more clearer vision;
NO.5 Compact structure, space saving and low work noise;
NO.6 6-120mm2 closed-mouth tubular terminal crimping without changing the crimping die, instantly changing the knife edge size;

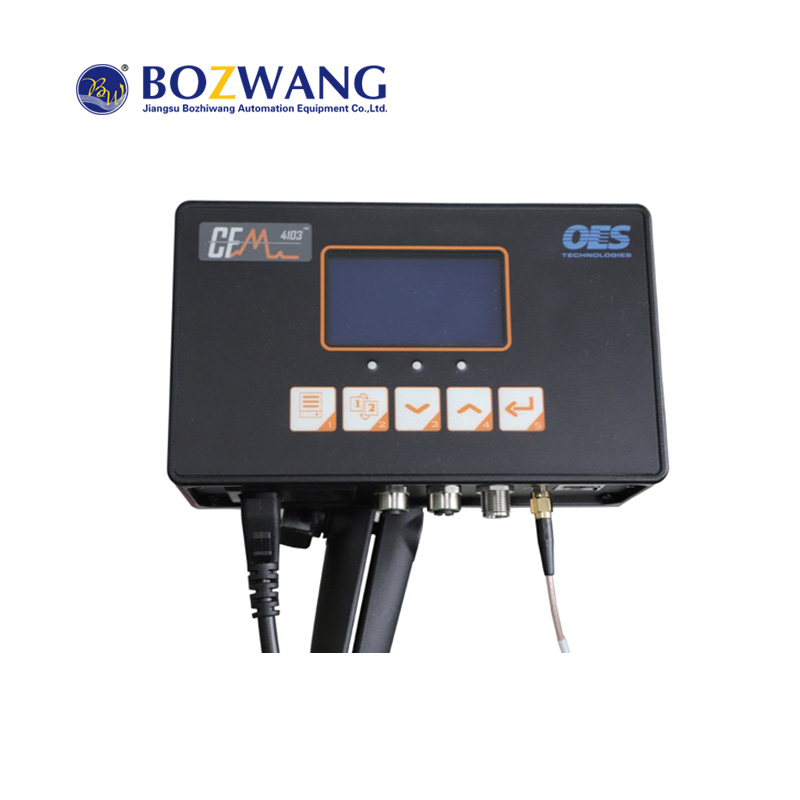

NO.7 OES pressure management system can be installed and connected to MES system.
| Technical Parameter | |||
| Wire range | 6-120mm² | Motor | 2300w |
| Crimping force | 200KN | Power | 220v 50/60Hz |
| Diameter. Max | 38mm | Weight | 230kg |
| Crimping width | 12.5mm（Can be special ordered) | Dimension | 700*860*1260mm |
•Scale & Workforce
40,000 m² facility with 45,000 m² building area, 500+ employees, and 300+ technical personnel.
•Deep Specialization
Core product families include FAKRA, HSD, automotive Ethernet, and EV high-voltage harness lines — not side products.
•Intelligent Processing
Mitsubishi PLC / fiber servo control, CCD vision, crimp-force monitoring, MES uplink, and full process traceability.
•Precision Engineering
Rotary stripping, servo depth control, foil/shield handling, and ±0.01 mm-class crimping accuracy on advanced lines.
•Strong R&D Base
300+ engineers, 160+ patents, and continuous development for automotive, 5G, and EV applications.
•Global Trust & Service
ISO 9001 / ISO 45001 / CE-capable systems, 12-month warranty, wooden-case export packing, remote commissioning, spare parts, and cable-sample testing — serving Aptiv-, Rosenberger-, Yazaki-, and BYD-tier plants in nearly 100 countries.
