BZW-6.0FK01 FAKRA cable semi automatic processing line

Defects liability period:12 Months
Degree of automation:Automatic
Transport package:Wooden Case
Specifications:700*500*430mm
Certificate:CE/ISO:9001/ISO45001
Trademark:bozhiwang
country of origin:Changzhou, China

FAKRA cable semi automatic processing line
FAKRA cable semi automatic processing line
img of detail_inquiryInquire Now
WHAT ARE YOU LOOKING FOR?
*
This field is required
Total quantity you need
*
This field is required
*
This field is required
Email format error
Due to email instability, you might miss our correspondence. Please provide your phone number for alternative contact.
This field is required
Telephone information is wrong!
Send Message
img of mask_layer_close
FAKRA cable semi automatic processing line
FAKRA cable semi automatic processing line
Product Detail

FAKRA cable semi automatic processing line image.jpg

Wire Processing Machine Introduction :

BZW-6.0FK01 FAKRA cable semi automatic processing line is mainly used for processing the Fakra cable. As a specialized cable processing machine, it is made with module style, stable working performance and high qualified rate. This wire processing machine also can do the intelligent management, to tracking the records of the inspection and production procedures during the daily working. It also can connect to the MES system and share the data, in order to improve the product quality and reduce labor cost. As a reliable cable processing machine, it ensures efficient Fakra cable production, while this wire processing machine provides full traceability and smart manufacturing capabilities for modern harness workshops.


Wire Processing Machine Description :

1.The wire processing machine uses PLC control, fiber communication, full servo system and stable working performance.
2.Touch screen control and parameters can be saved, it also can use the work sheet for production.
3.It Mainly uses world famous components brands to ensure the machine stability .
4.The cable processing machine is installed with OES to monitor the crimping force during the production.
5.Formula database system, storage one-key switching, operation authority management, product data tracking.


Wire Processing Machine Technical Parameters :

Wire rangeΦ2.8mm/3.3mm
Wire length100-10000mm（Other length can be customerized made）
Capacity5-6 S/PCS
Crimping force30KN
Power supply220V 50/60Hz
Air supply0.5Mpa-0.7Mpa，8m3/h
Weight2m（Standard）,4m ， About 3000 kg
Dimension5200*1000*2400mm
InspectWire feeding check, crimp pressure check, shield net check, conductivity check, air pressure check.
Applied applicatorOTP applicator, European mechnical applicator and pneumatic applicator.
FunctionWire jacket stripping，shield ring crimping，shield net pushing,foil stripping, inner conductor stripping and crimping,conductivity inspection, outer conductor crimping, NCT checking, wire receiving(Other functions can be customized made).
Keywords
cable semi automatic processing line,cable processing line,cable processing machine manufacturer,wire processing machine manufacturer
Related products

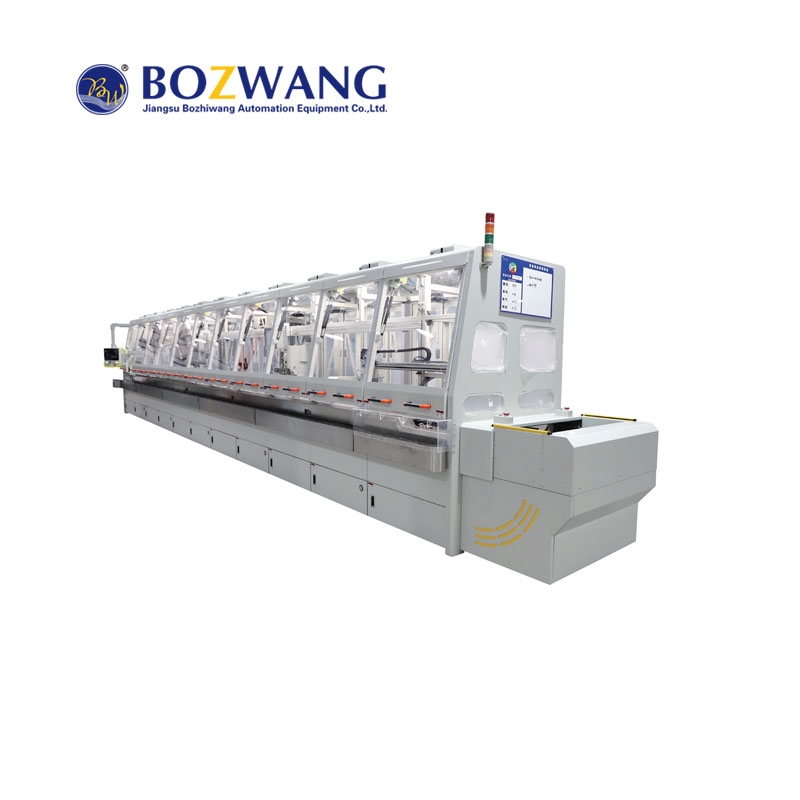

BZW-6.0H2 HSD Cable semi automatic intelligent processing line
