NO.1 The semi automatic wire cut and strip machine uses PLC control, fiber communication, full servo system and stable working performance；
NO.2 Touch screen control and parameters can be saved, it also can use the work sheet for production；
NO.3 It Mainly uses world famous components brands to ensure the machine stability；
NO.4 The semi automatic wire cut and strip machine is installed with OES to monitor the crimping force during the production；
NO.5 Formula database system, storage one-key switching, operation authority management, product data tracking.
NO.6 Products with similar processing technology: Rosenberger FK SF series, Rosenberger FK HFM series, Rosenberger RMC180° series, Rosenberger FK 90° non-waterproof series,
TE Mate-AX series/TFM series, Hulian miniFK/ordinary Fk series, electric connection mini FK series, Amphenol SPC FK/mini FK series, Xinhan mini FK/ordinary FK series, AVIC mini FK/ordinary FK series,
Huafeng mini FK series, Hirose 180°FK series, aerospace FK series, RG178 line FK series (for DJI civilian drones), Jiekang mini FK series.
Technical Parameters :
| Wire range | Φ2.8mm-3.3mm |
| Wire length | 100-10000mm（Other length can be customerized made） |
| Capacity | 4-5 s/pcs |
| Crimping force | 30KN |
| Power supply | 380V 50/60Hz |
| Air supply | 0.4Mpa-0.7Mpa，8m³/h |
| Weight | About 3500kg(Depending on the number of custom stations) |
| Dimension | 7200*1000*2250mm(Depending on the number of custom stations) |
| Inspect | Wire feeding check, crimp pressure check, shield net check, conductivity check, air pressure check. |
| Applied applicator | OTP applicator, European mechnical applicator and pneumatic applicator |

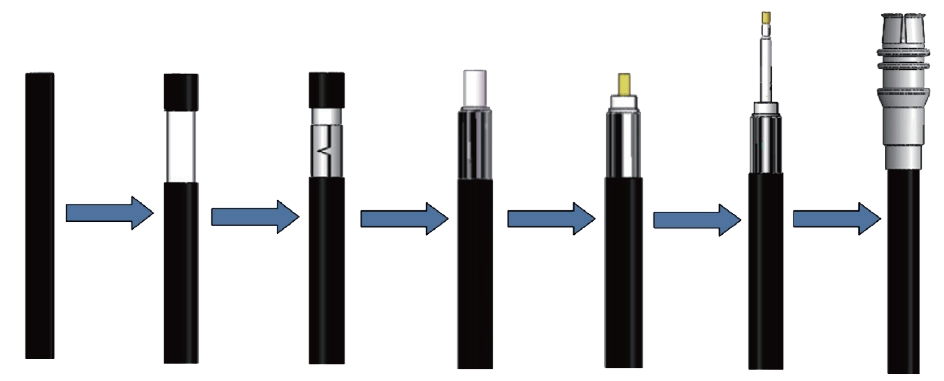

| Function | wire jacket stripping，shield ring crimping，shield net flip, foil stripping, inner conductor stripping and crimping, conductivity inspection, outer conductor crimping, NG check, wire receiving (Other functions can be customized made) |
